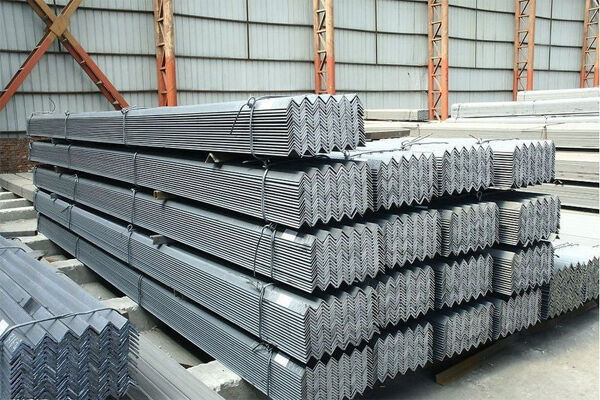

Angle Steel Introduction

The angle steel can be composed of various stress-bearing members according to the different needs of the structure, and can also be used as the connection between the members. Widely used in various building structures and engineering structures, such as building beams, bridges, power transmission towers, lifting and transporting machinery, ships, industrial furnaces, reaction towers, container racks, cable trench supports, power piping, bus support installation and warehouse shelves Wait.
Angle steel is a carbon structural steel for construction. It is a section steel with a simple section. It is mainly used for metal components and the frame of the factory building. In use, it requires good weldability, plastic deformation performance and certain mechanical strength. The raw material billets for the production of angle steel are low-carbon square billets, and the finished angle steel is delivered in a hot-rolled, normalized or hot-rolled state.

Type specification

It is mainly divided into two types: equal-sided angle steel and unequal-sided angle steel. Among them, unequal-sided angle steel can be divided into two types: unequal-side and unequal-thickness.
The specifications of angle steel are expressed by the dimensions of side length and side thickness. At present, the domestic angle steel specifications are 2-20, and the number of centimeters on the side length is used as the number. The same angle steel often has 2-7 different side thicknesses. Imported angles indicate the actual size and thickness of both sides and indicate the relevant standards. Generally, those with a side length of 12.5cm or more are large angles, those with a side length between 5cm and 12.5cm are medium-sized angles, and those with a side length of 5cm or less are small angles.
The order of import and export angle steel is generally based on the specifications required in use, and the steel grade is the corresponding carbon steel grade. In addition to the specification number, the angle steel has no specific composition and performance series.

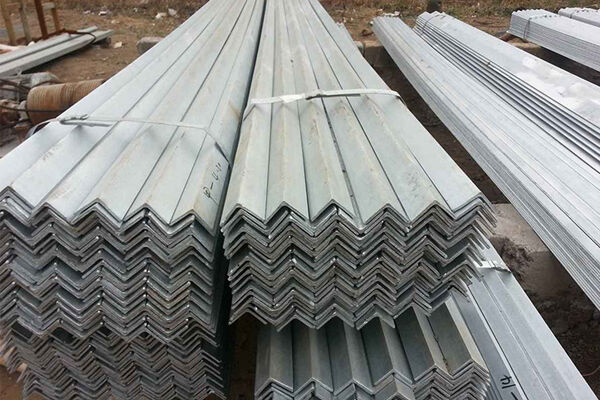

Equilateral angle vector
The delivery length of angle steel is divided into two types: fixed-length and double-length. The fixed-length selection range of domestic angle steel has four ranges of 3-9m, 4-12m, 4-19m, and 6-19m according to different specifications. The length of the angle steel produced in Japan ranges from 6 to 15m.

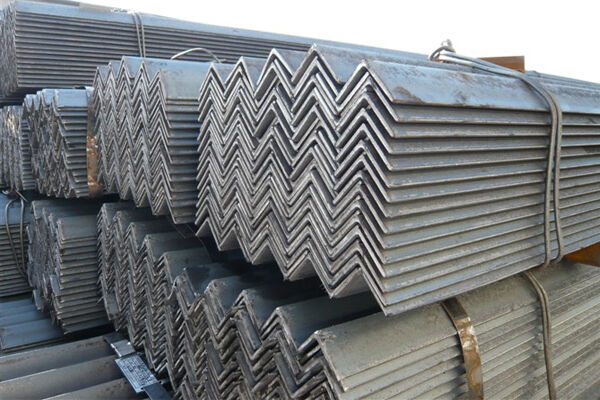

The section height of the unequal angle steel is calculated according to the long side width of the unequal angle steel. Refers to steel with an angular cross section and unequal lengths on both sides. It is a kind of angle steel. Its side length ranges from 25mm×16mm to 200mm×l25mm. Rolled by a hot rolling mill. The general specification of unequal angle steel is: ∟50*32--∟200*125, the thickness is 4-18mm
Unequal angle steel is widely used in various metal structures, bridges, machinery manufacturing and shipbuilding, various building structures and engineering structures, such as building beams, bridges, power transmission towers, lifting and transporting machinery, ships, industrial furnaces, reaction towers, Container racks and warehouses, etc.

chemical composition

(1) Composition index: The chemical composition of angle steel belongs to the rolled steel series for general structural use, and the main verification indexes are C, Mn, P, and S. According to different grades, the content varies. The approximate range is C<0.22%, Mn: 0.30—0.65%, P<0.060%, S<0.060%.
(2) Inspection method: When testing the above chemical components, the commonly used standard inspection methods include GB223, JISG1211-1215, BS1837, BS Manual 19, GOST 22536, etc.

Composition index

The chemical composition of angle steel belongs to the rolled steel series for general structural use, and the main verification indicators are C, Mn, P, and S. According to different grades, the content varies. The approximate range is C<0.22%, Mn: 0.30—0.65%, P<0.060%, S<0.060%.
